Digital IP/PSTN/Radio Receiver

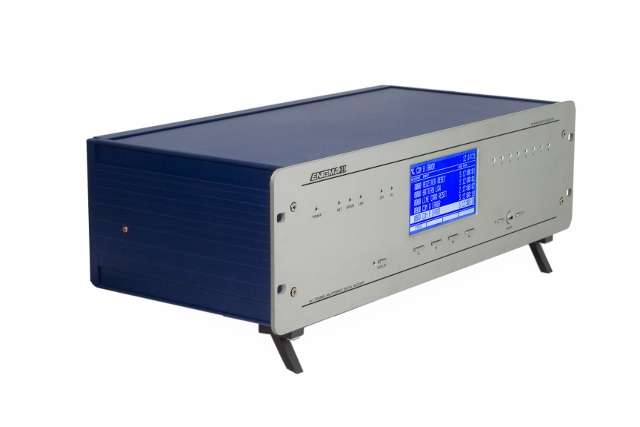

The ENIGMA II digital receiver
is the universal solution for all
burglary and fire monitoring stations.

DOWNLOAD
SOFTWARE
DOWNLOAD
FIRMWARE
MANUALS &
DOCUMENTS
RELATED
PRODUCTS
VILLBAU Biztonságtechnika - Enigma

The Enigma II monitoring receiver provides complex and reliable solution to build up a modern monitoring station. The device can receive signals from alarm control panels through IP network, telephone line and radio channel. Due to the universal operation, the device can receive all standard (and most of the non-standard) signals from alarm control panels and communicators. In combination with AlarmSyS PC-based monitoring software it guarantees not only reliable signal transmission, but also easy to use operator interface.


Features

  • Functional, stable and robust hardware receiver
  • Massive 19” rack housing
  • LCD display with 240x128 pixels
  • Power supply with backup (18Vdc main power / 12Vdc battery)
  • Bulit in IP card in base configuration (expandable)
  • 2 serial ports / USB connectors for PC connection
  • 1 radio card connector with 2 radio channels (optional)
  • 8 telephone line card connectors (optional)
  • Receiving 4/2, Contact ID and SIA format tel. messages
  • Receiving SIA DC-09, Enigma (E2) IP protocol messages
  • IP test code monitoring up to 255 accounts (expandable)
  • Client phone number and IP address display
  • Continuous checking of Internet connection
  • Remote programming (through IP network)
  • Event list monitoring from web browser
  • Encrypted communication (AES-128)
  • Two way radio communication with repeater unit
  • Local configuration through USB connector
  • Firmware update function
  • CE declaration, ISO 9001:2009 certificate
  • Excellent product support, development possiblities
  • Made in EU, proven quality

Technical Data

Product ENIGMA II
Power supply 18Vdc @ 2A (main) / 12Vdc @ 7Ah (battery)
Maximum current consumption about 500mA
(depends on configuration)
Event buffer up to 2.000 events
Operating temperature 10 °C / +30 °C
40% relative humidity
Sizes (W / L / H) 485 x 220 x 135 mm
Weight 5200 g
