UHF Radio Communicators

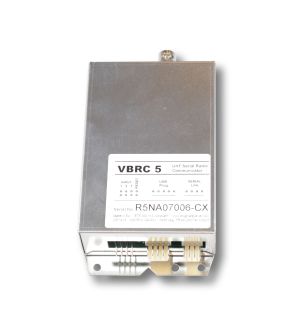

The VBRC-5 UHF Radio Communicators use serial connection
or hardwired inputs to enable control panels to report via radio to
monitoring centrals.


DOWNLOAD
SOFTWARE
DOWNLOAD
FIRMWARE
MANUALS &
DOCUMENTS
RELATED
PRODUCTS
VILLBAU Biztonságtechnika - Enigma

The VBRC5 communicator is ideal solution for installation places where radio communication infrastructure is already built. By means of the device immediate alarm transmission is guaranteed without any additional operation cost. Other main advantage is that the device is independent from any service provider. The VBRC5 can be connected to the serial port of the alarm control panel, so events are received at CMS in a moment. Although the communication is one-way, even so it is stable and reliable due to multiple event sending to monitoring station.


Features

  • Immediate two-way transmission (Contact ID)
  • 1-way Radio, multiple event sending (3x3)
  • Stainless steel housing
  • About 20 km operating range (depends on environment)
  • Event receiving through serial port
  • Telephone communication transfer according to phone number
  • Configurable test sending parameters
  • Different antenna types according to environment (optional)
  • Local configuration through USB with VUP cable (optional)
  • Three inputs with configurable event codes
  • 8 inputs transmission with VBIP-IO8 module (optional)
  • Firmware update function
  • CE declaration, ISO 9001:2009 certificate
  • Made in EU, excellent product support

Technical Data

Product VBRC-5
Power supply 12 V DC
Maximum current consumption 1.5 A
Operating frequency UHF 440-450 MHz
Transmission power 2 W
Average range 20 km
Number of inputs 3
Events through serial Yes
Operating temperature -10 °C / +50 °C
Sizes (W / L / H) 70 x 100 x 30 mm
Weight 130 g
