IBS & ALPHA Outdoor Sirens
The SOLO batter-backup outdoor sirens have been introduced 15 years ago,
and have proven their reliability and excellent price/value ratio since then.
Thanks to their fully weather-proof resin coated electronic board, they can be
used in even in harsh environment.
MANUALS &
DOCUMENTS
RELATED
PRODUCTS
VILLBAU Biztonságtechnika - Enigma

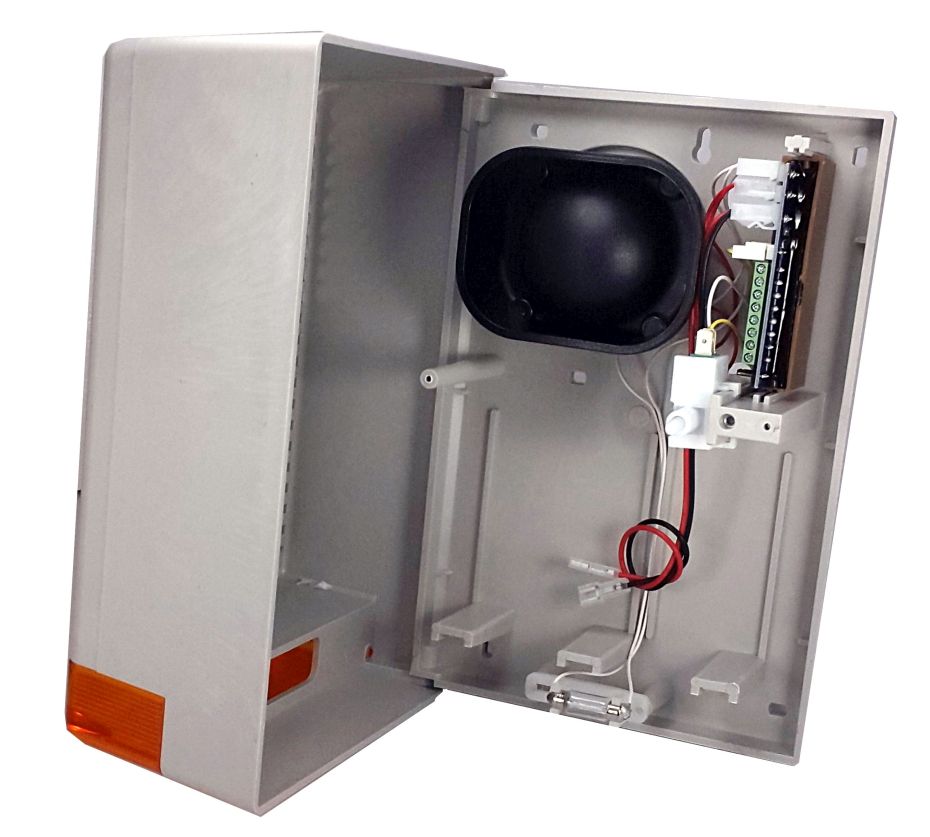

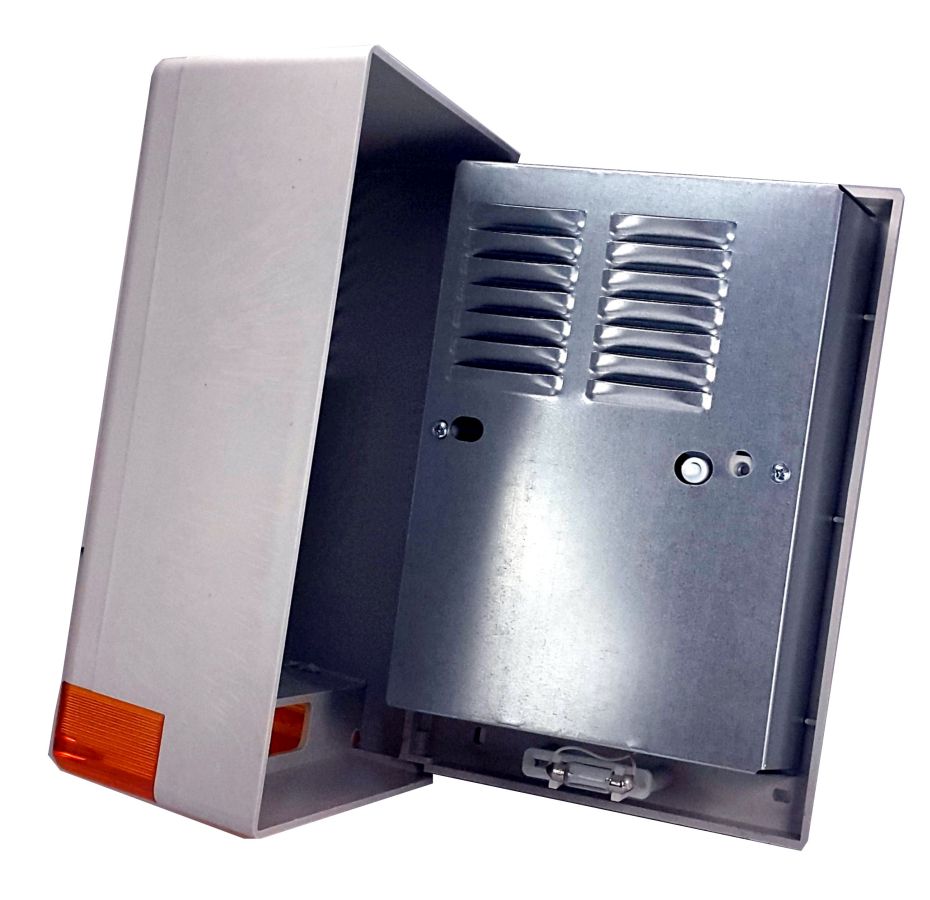

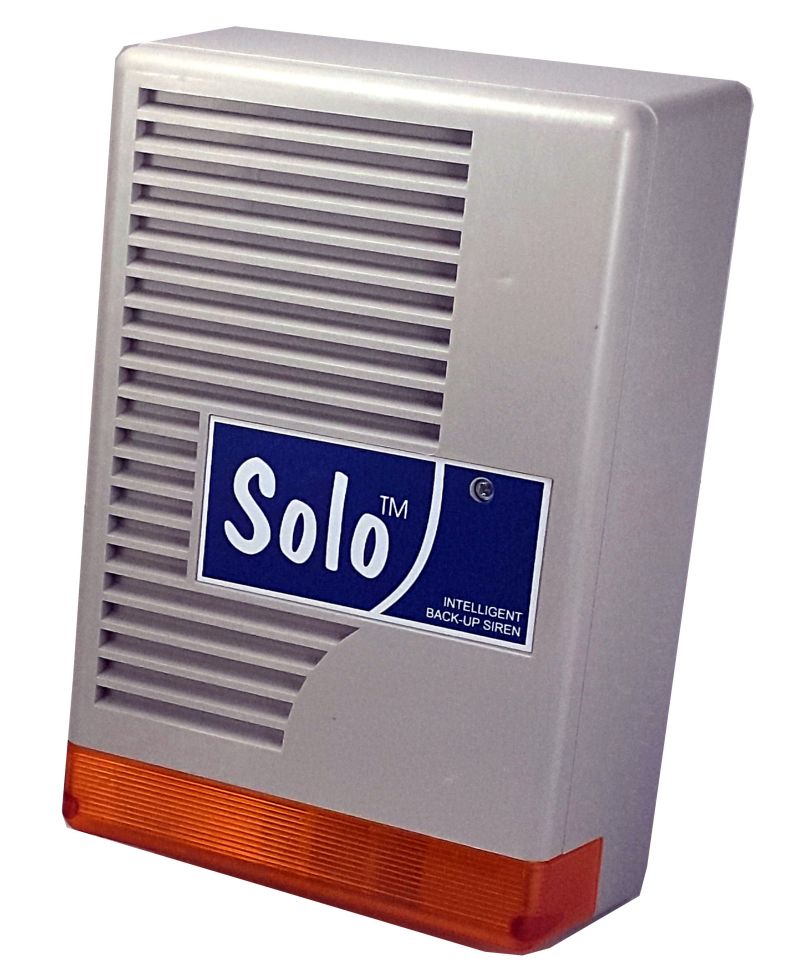

SOLO siren is perfect solution for local alarm signal of a modern alarm control system. Due to its own backup battery it can work in case of wire tamper. Sound power of the siren is tremendous, changing weather has no effect on proper operation. Double housing of the siren (outside ABS, inside metal housing) provides high protection against tampering..


Features

  • Outdoor usage, double housing (external ABS, inside metal)
  • Resin spilled weatherproof electronics
  • Tamper protection (against wire tamper, opening, removing)
  • Alarm control panel- or self operated tamper protection
  • Positive or negative siren start
  • Service input to disable siren from alarm control panel
  • Lamp flash control input (to signal system status)
  • Siren trouble output
  • Limited current consumption from external supply (750 mA)
  • Visual and acoustic test at power-up
  • Easy installation with drill plate (opening or separable cover)
  • CE approved, ISO 9001:2009 certificate
  • Made in EU, proven quality



IMPORTANT NOTE: From version 5.10, the speaker unit of the sirens have been changed to a different model. Altough the new speaker is smaller in size, the sound pressure of the siren remained the same, as the sound frequency range has been adopted to match the characteristics of the new speaker unit. Thoroughful adjustment and measurement process ensures, that the performance of the siren is not compromised in any ways. Typical sound pressure value with the new speaker unit is between 121.7..122.1 dB(A)/1m (nominal 120dB(A)/1m).


Technical Data

Product SOLO IBS
Power supply 13.8 VDC
Maximum current consumption max. 2 A
Standby current consumption max. 60 mA
Max. current from external supply 750 mA
Backup Battery 12 V, 7 Ah
Sound Pressure 120 dB (A), @ 1m
Case protection level IP 34
Operating Temperature -30 °C / +50 °C
Sizes (W / L / H) 180 x 90 x 270 mm
Weight (without battery) 2000 g
